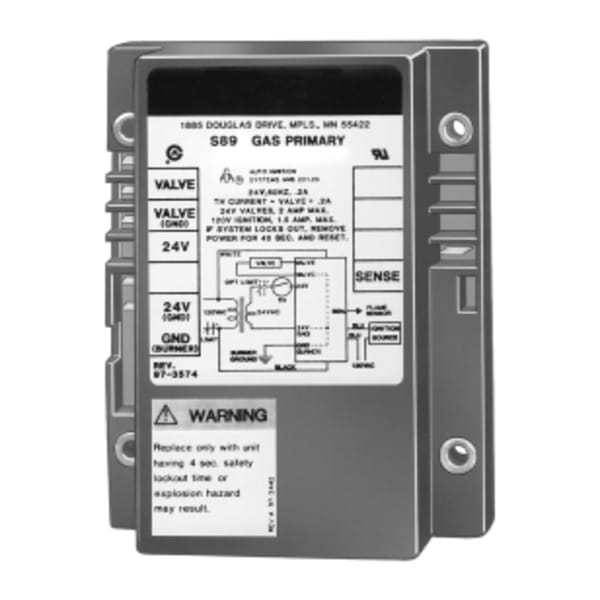

Direct Spark Ignition Control, Two Rod with 4 sec trial time and lock out timing
Direct Spark Ignition Control, Two Rod with 4 sec trial time and lock out timing
ERP #HONE-S89E1058/U
MFR #S89E1058/U
UPC085267085557
Log In or Register for Product Pricing & Availability
Description
Attributes
Documents
Specifications
Description
The S89E Direct Spark Ignition Control Modules control the ignition sequence and gas control operation in direct spark systems used primarily on gas-fired atmospheric and power burners in residential furnaces and heating appliances
Attributes
BrandResideo
TypeIgnition Assemblies
Specifications
- Application: Direct Spark Ignition Control Modules control the ignition sequence and gas control operation in direct spark systems used primarily on gas-fired atmospheric and power burners in residential furnaces and heating appliances.
- Approvals and Standards: UL: Component Recognized: File No. MP268, Guide No. MCCZ2|CSA Certified: 158158-1047805
- Flame Failure Response Time: 2.0 sec @ 2.5 microamp
- Ignition Sequence: Lockout
- Ignition Source: External (120 VAC powered) High Voltage Spark Generator
- Ignition Trial Time: 4 sec
Direct Spark Ignition Control, Two Rod with 4 sec trial time and lock out timing
Resideo
MFR #S89E1058/U
