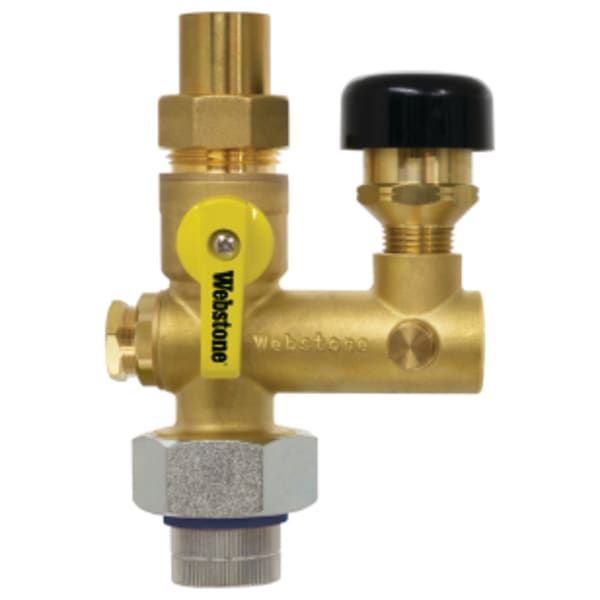

Pro-Pal Dielectric Water Heater Supply Valve, Full Port DZR Brass Ball Valve, w/ Dielectric Union End, 1/2" FIP Vacuum Relief Valve Port, (2) Plugged FIP Ports (1/2" & 1/8"), Includes Vacuum Relief Valve

• Simplifies storage tank water heater installations
• FIP dielectric union for connection to the water heater
• Integrated valves isolate the water supply for service
• 1/2" FIP cold water tapping for Water Heater Tempering Valve
• 1/2" FIP port for installation of vacuum relief valve and 1/8" plugged gauge port
• Includes support hardware and vacuum relief valve
• Expansion tank service version available if required
• Saves Time, Replaces Components, Eliminates Leakpaths
• This valve is actuated by a blowout proof stem.
• Double O-ring Stem Seals
• Models available to satisfy all state and federal low-lead laws
• Patents Pending
• Available in FIP Union x SWT, FIP Union x PSH, FIP Union x PRS, FIP Union x MIP, FIP Union x FIP
• Certified to NSF/ANSI/CAN 61 & 372
