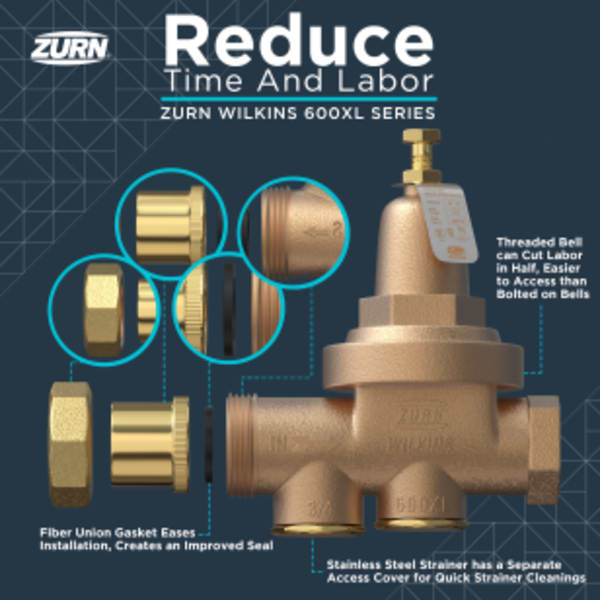

The 1" 600XLHR Pressure Reducing Valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial, and new construction applications. It includes a spring range of 75 psi to 125 psi, factory set at 85 psi. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals – together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.

• Fiber union gasket ensures fast installation
• Durable construction ensures low maintenance and lifecycle costs
• Inlet pressure changes with balanced design features to protect the system
• Stainless steel strainer screen features single-cap removal
• Threaded bell provides easier access than bolted on bells
• Low-lead law compliant
• ASSE® Listed 1003
• IAPMO® Listed
• City of Los Angeles Approved
• Meets the requirements of NSF/ANSI 61
