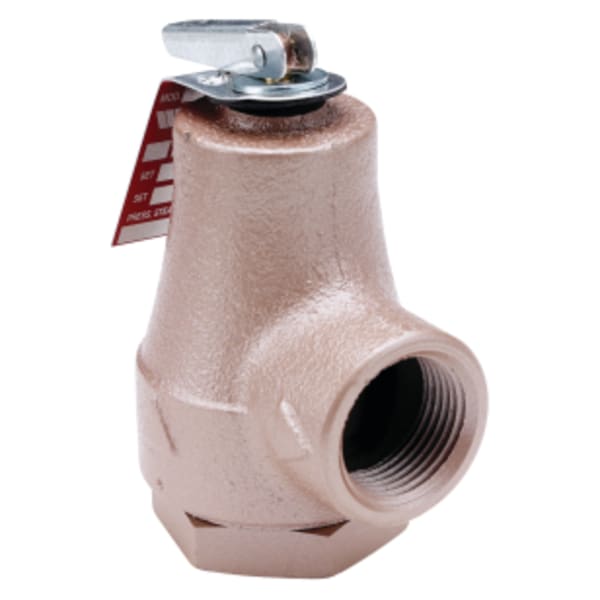

This 3/4" pressure relief valve is used in hot water boiler applications to protect against excessive pressure on all types of hot water heating boiler equipment. It consists of a iron body with forged bronze inlet, non-metallic disc-to-metal seating and stainless steel spring. This valve resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and should not be used as an operating control. The pressure setting is 45 psi for applications up to 875,000 BTU/hr.

• Iron body with forged bronze inlet
• Water seal of high temperature resisting material isolates spring working parts from water during relief
• Non-mechanical seat-to-disc alignment will not stick or freeze
• 875,000 BTU/hr rating
